Deborah R. Fowler
Similar Triangles

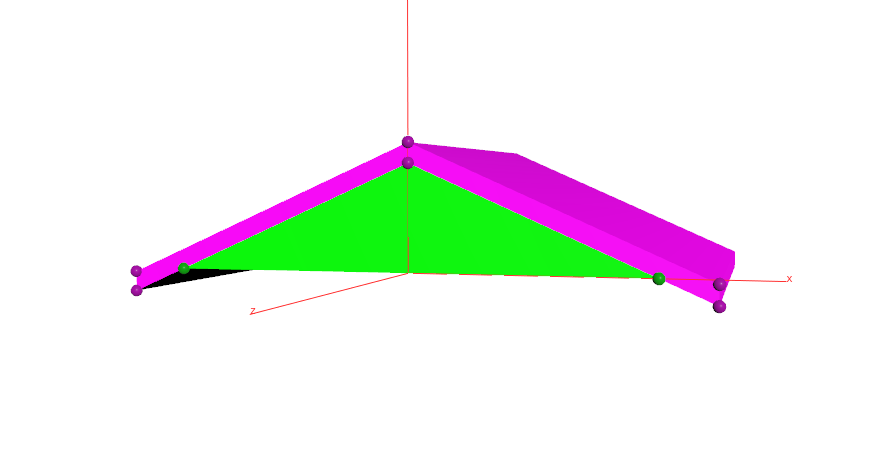

Using similar triangles to build a better roof. Description here in pdf format.
Hipnc sample file to illustrate this concept Example betterRoofH18.hipnc

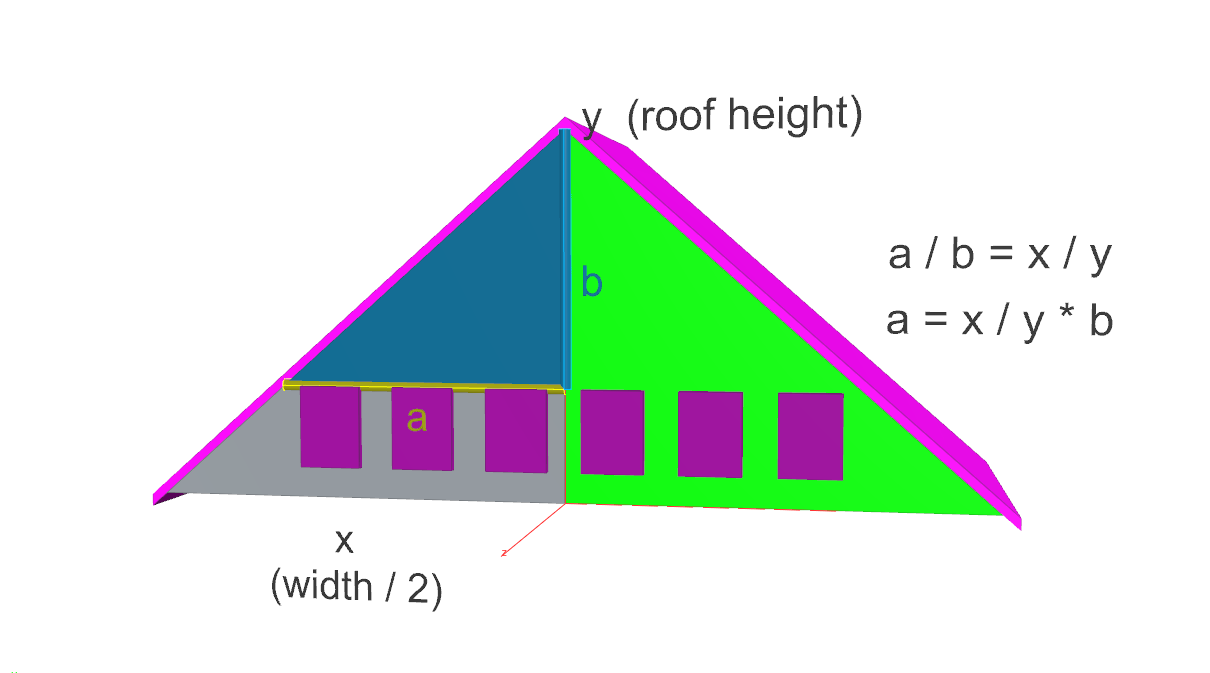

Roof Peak Windows. Example Example betterRoofH18WithWindows.hipnc This could also be done in expressions rather than a point wrangle but the point wrangle was used to make the concept clear.

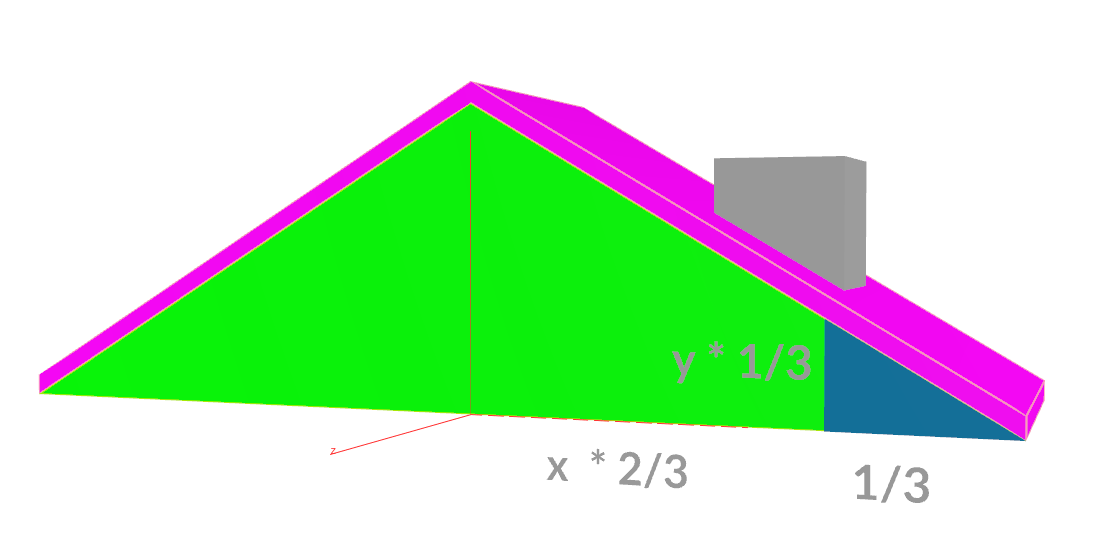

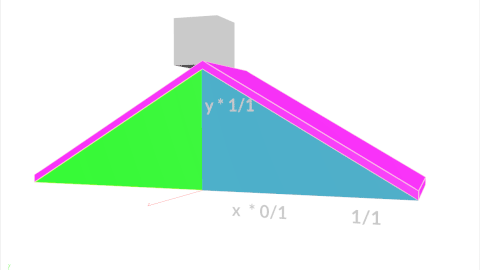

Roof Dormers. Example Example betterRoofH18WithWindowsAndDormers.hipnc You can also extend this to have a roof Dormer or a Chimney. Similar triangles are cool!
For more information about dormers
click here for
wiki and here
for this old house.
Hipnc sample file to illustrate this concept Example betterRoofH18.hipnc
Roof Peak Windows. Example Example betterRoofH18WithWindows.hipnc This could also be done in expressions rather than a point wrangle but the point wrangle was used to make the concept clear.
Roof Dormers. Example Example betterRoofH18WithWindowsAndDormers.hipnc You can also extend this to have a roof Dormer or a Chimney. Similar triangles are cool!
For more information about dormers
click here for
wiki and here
for this old house.
